Assembly tables feeders

Assembly tables feeders

Table of dimensions of the samples tables 170.BM and feeders 90.207
Type  Capacity (weight load ) kg S-wide [ mm ] L-lenght [ mm ]  H-height [ mm ]  A-vertical bearing [ mm ] B-horizontal bearing [ mm ]

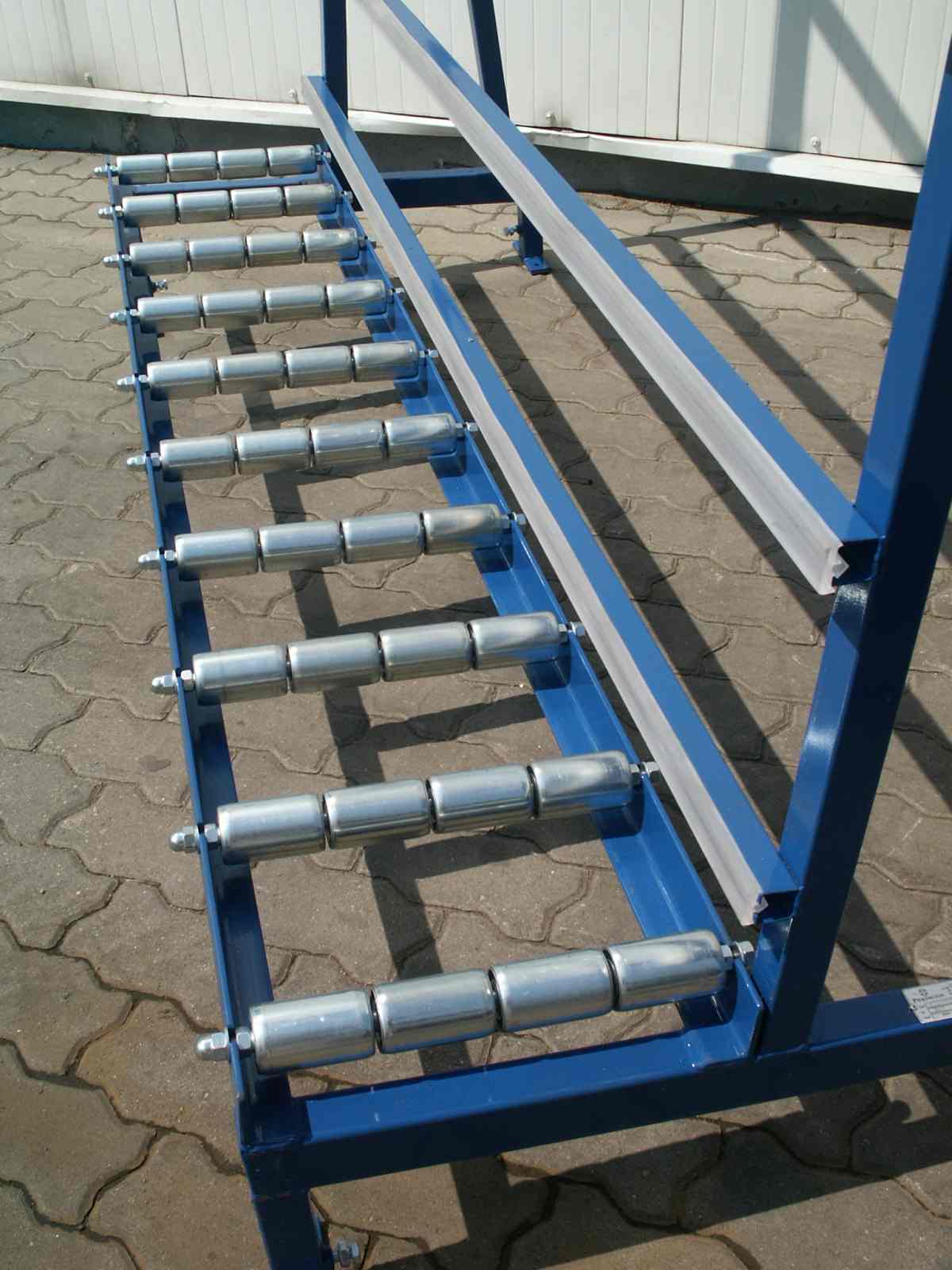

 90.207.4  500  500  3000  2300  2000  150

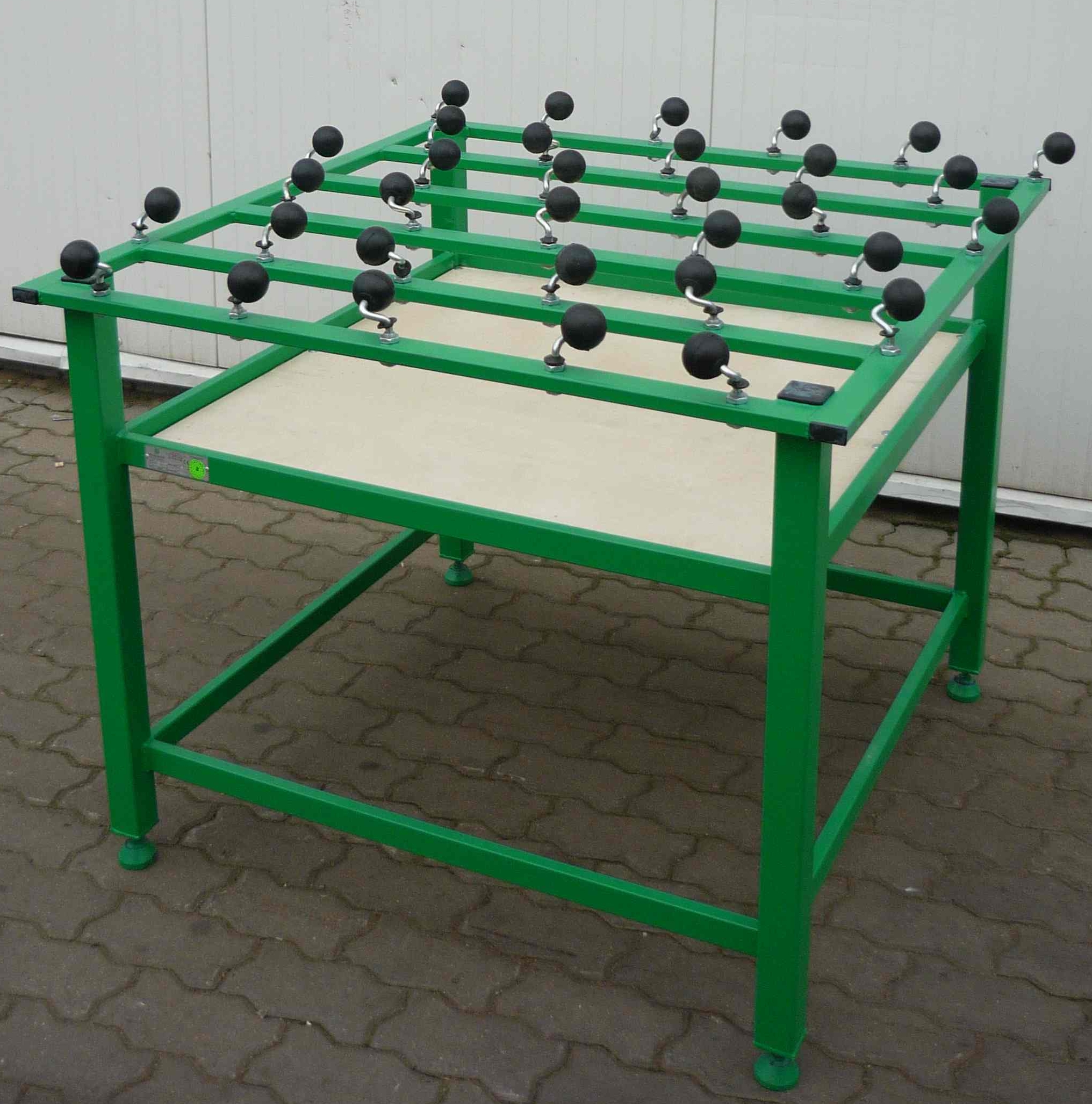

170.BM.105  200  1100  1100  950     -    -
170.BM.100  300  1300  2500  800     -     -
If you need other dimensions, please contact us by email or phone. We have a whole game of solutions of various dimensions in the database.

feeder for transport windowstable to operating glasstable for glazing
