Glass shelves for storing less glass sizes

Table of dimensions of the samples shelves for storing less or 1/2 jumbo glass sizes
Type

Capacity of panel

(weight load ) kg

S-wide of panel

 [ mm ]

L-lenght of panel

[ mm ]

H-height of panel

 [ mm ]

A-vertical bearing glass

[ mm ]

B-horizontal bearing glass

[ mm ]

70.034.1P 6x2500 2380 4570 2990 2620 230
70.101 15x500 3265 3430 1990 1700 100
70.108A 17x500 4850 3011 2125 1715 100
70.105 12x500 2700 3430 2050  1700 100
70.108 17x500 3340 3430 2050 1700 100

If you need other dimensions, please contact us by email or phone. We have a whole game of solutions of various dimensions in the database.

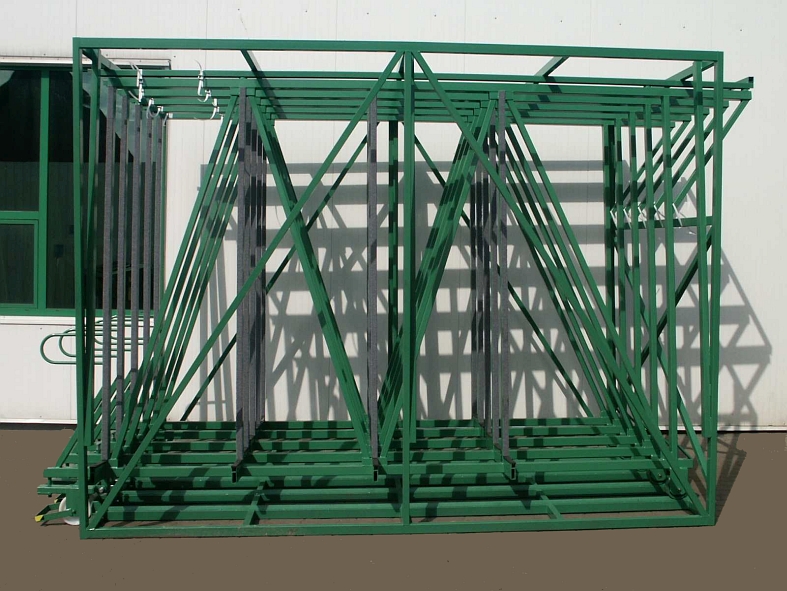

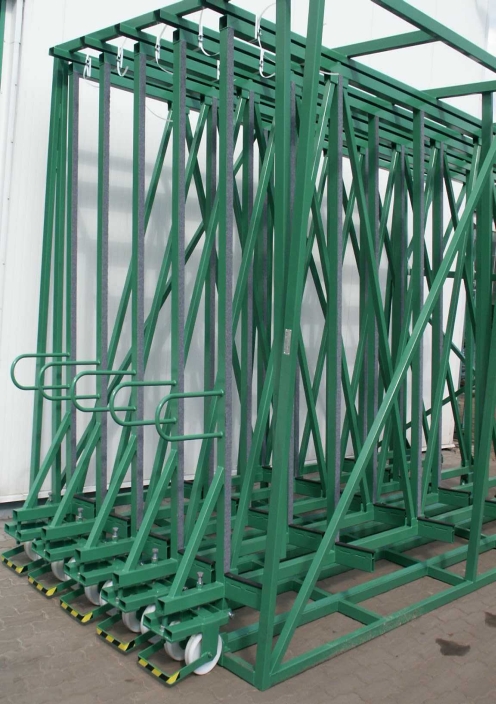

6 shelves in panel Glass shelves side view

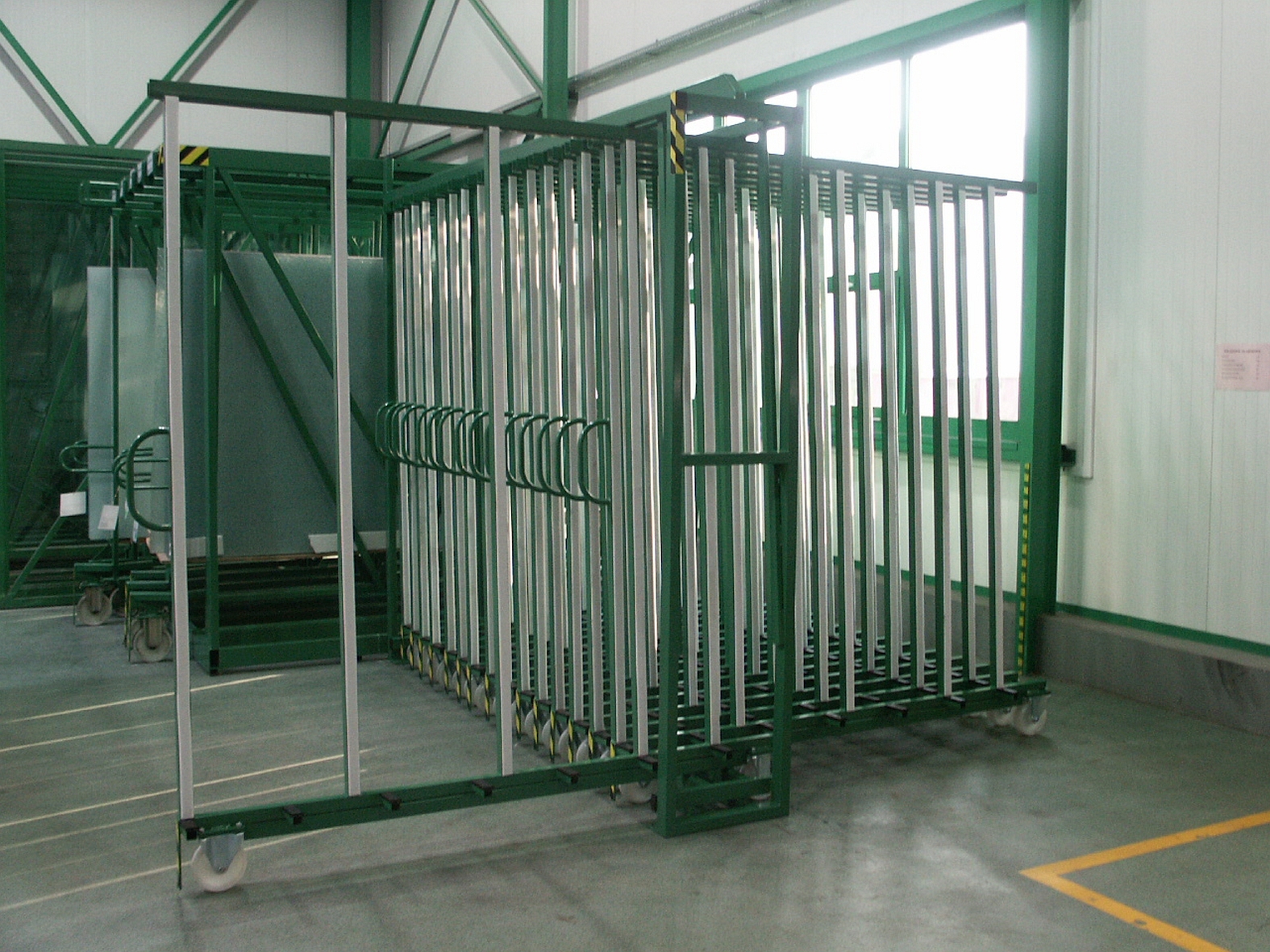

narrow gate shelves- side view

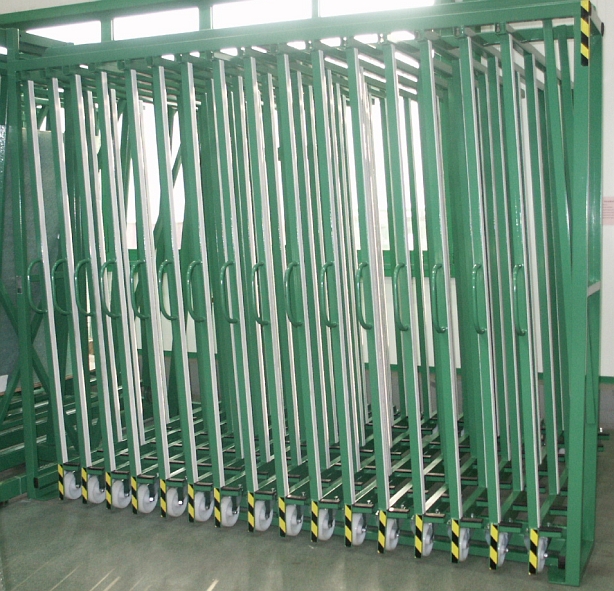

narrow gate shelves - 16 shelves
