Pilkington Profilit™ is an alkaline cast glass in U-shaped form. The profiled glass with its installation system offers many interesting and varied architectural solutions.

Overview

A self-supporting glazing system, Pilkington Profilit™ Profiled Glass Architectural System offers a wide range of design options.

With its significantly higher design flexibility, Pilkington Profilit™ Glass is an excellent alternative to glass block and other translucent materials.

Pilkington Profilit™ Glass has been used for large glass facades and interior glass walls in Europe for more than 30 years, in a wide range of building types, including architectural and residential applications.

Applications

Pilkington Profilit™ can be used in interior or exterior applications e.g. industrial, commercial or residential buildings. The "U-shaped" channels can be installed either vertically or horizontally. The glass is available in a variety of colors and textures with varying translucency, allowing for the passage of natural light without the loss of privacy.

Pilkington Profilit™ is energy efficient, provides excellent sound reduction and is one of the most cost-efficient glass wall systems available. It can be single or double shelled.

For more information about Pilkington Profilit™ system contact Technical Glass Products http://www.tgpamerica.com/

Benefits

Pilkington Profilit™ offers following benefits:

  • Provides high light diffusion and excellent sound reduction.
  • Can be fitted in single or double shell, vertically or horizontally.
  • Allows the construction of curved walls.
  • Rapid and easy maintenance and replacement.
  • Available with safety characteristics (thermally toughened).
  • Available in different designs e.g. different textures, dimensions, colors.

Brochures

Project references

Technical Information

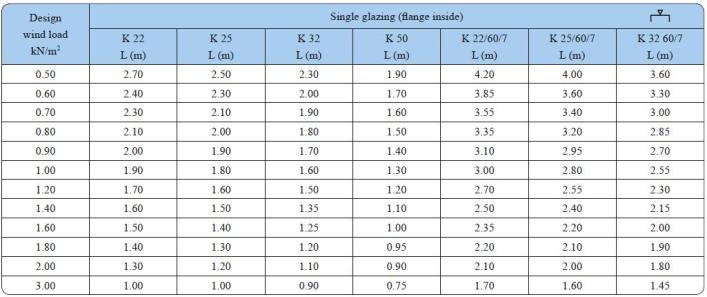

Installation length (vertical)

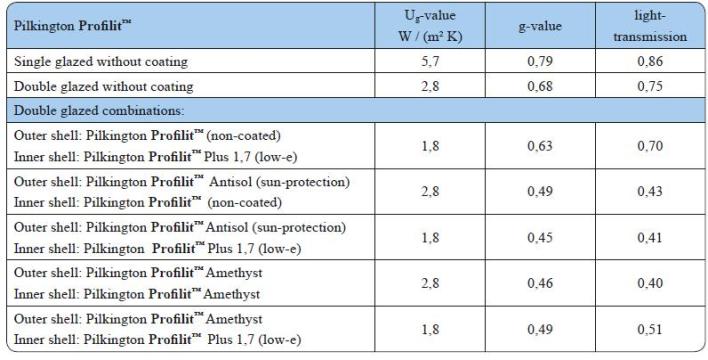

Physical Properties
